Garage Weatherstripping That Keeps Out Water

A garage door can look fully closed and still leave a path for rainwater, cold air, insects, and windblown debris. Garage weatherstripping closes the gaps around the door perimeter and at the floor, where ordinary door adjustments cannot help. When the right seal is installed correctly, the garage stays cleaner, drier, and easier to heat or cool.

The key is matching the weatherstrip to the gap you actually have. A thicker seal is not automatically better. If it is too large, the door may bind, reverse, or wear the opener and hardware faster. If it is too small, water and drafts will continue coming through.

Where Garage Weatherstripping Fails

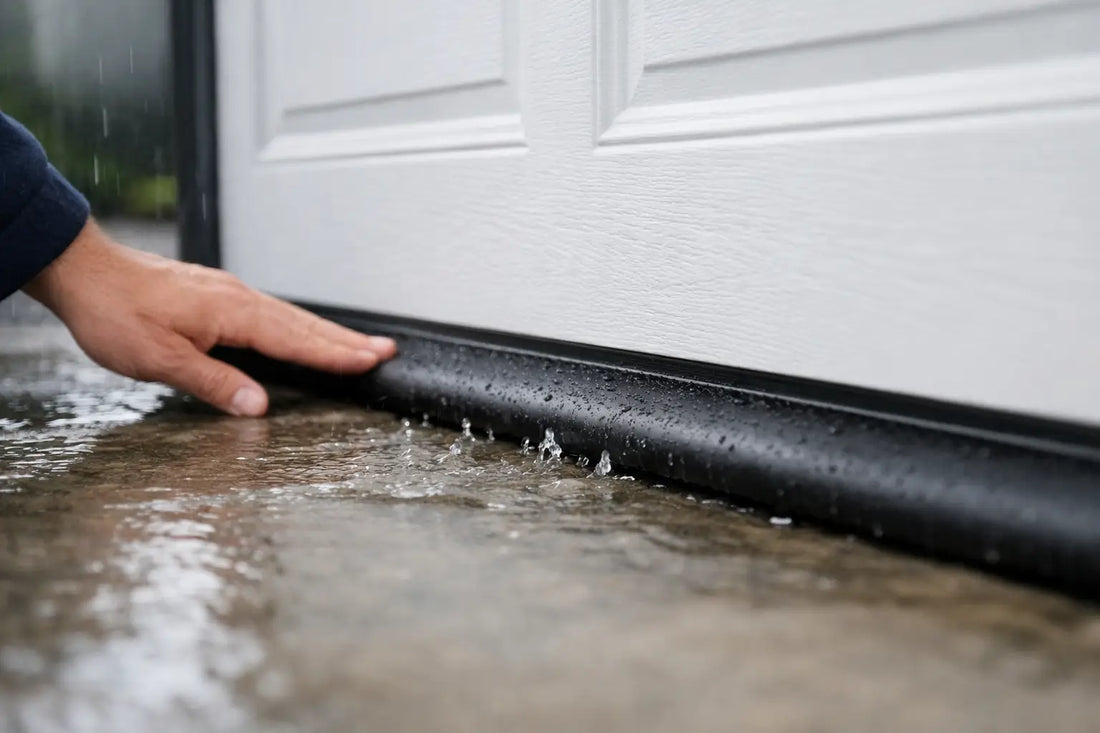

Most residential garage doors use several seals working together. The bottom seal contacts the concrete when the door closes. Side and top weatherstripping, often called stop molding, presses against the outside face of the door. A floor threshold can add another barrier where the slab is uneven or rain tends to run toward the garage.

Start with a simple daylight test. Close the door during the day and look from inside the garage. A thin line of light along the side or top may be normal if the seal is lightly compressed, but visible open gaps are not. At the bottom, look for sections where the rubber is flattened, cracked, torn, or no longer touching the floor.

You should also inspect after a hard rain. Water trails, leaves piled inside the opening, or dirt streaks along the bottom corners point to a sealing problem. Do not assume the bottom seal is always the cause. An unlevel slab, poor driveway drainage, or a door that is out of level can create the same symptoms.

Four common signs it is time to replace weatherstripping are:

• Cracked, brittle, or permanently flattened rubber
• Daylight visible around the sides, top, or bottom of the door
• Rainwater, snowmelt, bugs, or leaves entering the garage
• A door that rattles against worn side seals in windy weather

Choose the Right Seal for the Job

Bottom seals are not one-size-fits-all. The correct replacement depends on the retainer attached to the bottom of your garage door. Many doors use an aluminum track with channels that accept a T-style or bead-style seal. Others use a single-channel retainer, a U-shaped astragal, or a screw-on rubber seal.

Before ordering, measure the width of the door and inspect the existing retainer. If possible, remove a short damaged section and compare its profile. The seal must fit the channel securely while hanging low enough to compress against the floor. A seal that slides out of the retainer or folds under the door will not last.

Vinyl bottom seals are common and cost-effective for moderate conditions. Rubber and EPDM-style materials generally stay more flexible in cold weather and resist cracking better over time. For garages exposed to intense sun, freezing temperatures, or frequent vehicle traffic, material quality matters more than saving a few dollars on a thin replacement seal.

Side and top weatherstripping usually consists of a vinyl flap attached to rigid PVC, wood, or aluminum mounting material. The flexible flap should rest against the face of the closed door, not drag heavily across it. It needs enough contact to block weather without creating excessive friction every time the door moves.

A threshold seal is useful when the concrete floor has shallow dips, cracks, or a slight slope toward the garage. It adheres to the slab and creates a raised contact point for the bottom seal. This can improve water resistance, but it is not a cure for serious drainage issues. If water is pooling against the door, correct the drainage problem first or the threshold may only redirect the water.

Measure Before You Remove Anything

A fast measurement prevents most installation mistakes. Measure the full width of the door opening, not just the damaged section. Bottom seals are often sold in standard lengths and can be trimmed after installation. Buy enough length to run continuously across the door, with a small amount extra for squaring the ends.

For side seals, measure from the concrete floor to the top of the door opening. For the top seal, measure the full opening width. Check the condition of the mounting surface while you are there. Rotten wood jambs, loose fasteners, bent aluminum, and cracked PVC can prevent a new seal from sitting straight.

Also check door operation before replacing the weatherstrip. A door that is sagging, out of level, or poorly balanced can leave inconsistent gaps that no seal will solve cleanly. If one bottom corner is consistently high above the floor, inspect the rollers, tracks, cables, and door alignment. Do not adjust torsion springs, lift cables, or bottom brackets unless you are trained to do that work. Those components are under dangerous tension.

How to Install Garage Weatherstripping Correctly

For a bottom seal installed in an existing retainer, raise the door enough to work safely and secure it in place. Remove the old seal by sliding it out of the track. If it is stuck, dirt, corrosion, or a pinched channel may be the problem. Clean the retainer thoroughly and inspect it for sharp edges or crushed sections before feeding in the new seal.

A light application of soapy water can help a new seal slide through a clean channel. Feed it evenly, keep the seal from twisting, and pull it across the full width. Once it is centered, trim the ends square. The finished seal should extend to each edge of the door without bunching or stretching.

For side and top stop molding, close the door first. Position the weatherstrip so the flexible flap makes even contact with the door face. Start with a few fasteners, then check the contact from inside before fully securing the strip. The flap should compress slightly when the door is closed. If it is pushed too far inward, it can drag on the door and create unnecessary resistance.

When installing a threshold, work on a dry, clean concrete surface. Sweep away grit, remove oil residue, and follow the adhesive manufacturer's cure-time requirements. Set the threshold where the bottom seal will land when the door closes. A dry fit is worth the extra few minutes, especially on wide doors or uneven slabs.

After installation, run the door through several complete open-and-close cycles. Watch the bottom seal as it meets the floor and listen for rubbing along the sides. Then test the opener's safety reversal system. A seal that is excessively thick or a threshold that is too tall can change the door's closing force and affect how the opener responds.

Do Not Use Weatherstripping to Hide a Door Problem

Weatherstripping is a performance part, but it cannot correct worn mechanical components. If the door shakes, binds, or closes crooked, start with the moving system. Worn rollers, loose hinges, damaged tracks, and weak or improperly sized springs create movement that can quickly tear up new seals.

This matters for noise as well. A worn perimeter seal may allow a door to rattle in the wind, but most operating noise comes from vibration and metal-on-metal contact in the door hardware. Addressing both areas gives better results: weatherstripping controls outside air and debris, while quality rollers, hinges, and vibration-control upgrades improve how the door moves.

A good seal should not make the door feel harder to operate. If it does, stop and check the fit rather than forcing the opener to work through the resistance. The goal is a light, consistent compression line around the opening.

Make the Seal Last Longer

Garage weatherstripping wears faster when grit is allowed to build up along the floor. Sweep the opening regularly, especially after storms and during winter when road salt and sand get carried in by vehicles. Clean the seal with mild soap and water, then inspect it seasonally for splits, loose ends, and areas that no longer contact the door or slab.

Avoid petroleum-based cleaners or lubricants on vinyl and rubber seals unless the product specifically says it is safe for that material. These products can soften, stain, or shorten the life of some weatherstripping compounds.

If you maintain the door and replace worn seals before they fail completely, garage weatherstripping becomes a simple repair instead of a recurring water, pest, and energy-loss problem. A properly sealed door should close cleanly, operate freely, and leave the garage ready for whatever the next storm brings.
