Garage Door Weather Seal Replacement
A garage door that leaves a pencil-wide gap at the floor is not a small issue. That opening lets in water, dust, cold air, insects, and road grit, and it can make the whole door system work harder than it should. Garage door weather seal replacement is one of the simplest ways to tighten up the opening, protect stored items, and improve day-to-day performance without tearing into major hardware.
Most homeowners notice the bottom seal first, but weather sealing is not just one strip of rubber. A complete seal system can include the bottom seal, vinyl stop molding around the jambs, and a top header seal. When one section wears out before the others, you can replace only the failed piece. If the whole perimeter is brittle, cracked, or flattened, replacing all sealing surfaces at once usually gives the best result.
When garage door weather seal replacement is needed
The clearest sign is daylight around the edges of the closed door. You may also see water streaks on the floor after rain, leaves and dust blowing in, or a bottom seal that looks compressed and torn instead of flexible. In colder regions, a failed seal often shows up as a draft you can feel standing near the door.
Noise can be part of the picture too. Weather seals do not fix a noisy garage door the way rollers, hinges, or vibration-control parts do, but they do help reduce rattle where the door meets the opening. If the door slaps against hardened side seal or closes onto a flattened bottom seal, operation gets harsher. A fresh seal gives the door a more controlled contact point.
Age matters, but exposure matters more. Doors facing direct sun tend to dry out faster. Cold climates make rubber less forgiving. If the garage sees frequent traffic, the bottom seal takes repeated compression cycles and wears sooner than a lightly used door.
Know which seal you need before you order
This is where many replacement jobs go sideways. "Garage door seal" sounds universal, but bottom seals come in different profiles and retention methods. The most common residential setup uses an aluminum or steel retainer attached to the bottom of the door, and the seal slides into that retainer through channels. The shape that slides into the track can vary, often called T-end, bead-end, or bulb-style configurations.
If you order the wrong profile, it will not seat properly even if the length is right. The easiest way to avoid that is to remove a small section of the old seal and compare the end shape, track width, and overall dimensions. If the retainer itself is damaged, bent, or heavily corroded, replacing only the seal may not solve the problem.
Side and top seals are different. These are usually mounted to wood or vinyl stop molding around the frame and compress lightly against the face of the closed door. If the stop molding is cracked, warped, or pulling away from the jamb, the seal may fail even with new material installed.
Bottom seal vs. perimeter seal
The bottom seal handles uneven concrete, wind-driven debris, and surface contact. It is usually the first line of defense and the first part to wear out. If you have a gap only at the floor, start there.
Perimeter seal on the sides and top handles air infiltration around the frame. If you still see light at the jambs after replacing the bottom seal, the side or header seal is likely the missing piece. On older doors, both systems often need attention because the failure is not isolated.
There is a trade-off here. A tighter seal keeps out weather better, but if it is oversized or poorly aligned, it can add closing resistance or make the opener work harder. The goal is full contact, not excessive compression.
Choosing the right material
Rubber and vinyl are the common options. Rubber stays flexible well and generally handles temperature swings better. Vinyl can be cost-effective and works fine in many applications, but it may stiffen or crack sooner in harsher conditions. For homeowners who want longer service life and fewer repeat replacements, material quality matters more than saving a few dollars upfront.
This is one of those parts categories where OEM-grade fit makes a difference. A seal that slides correctly, compresses evenly, and holds shape over time saves frustration on installation and performs better through seasonal changes.
How to handle garage door weather seal replacement

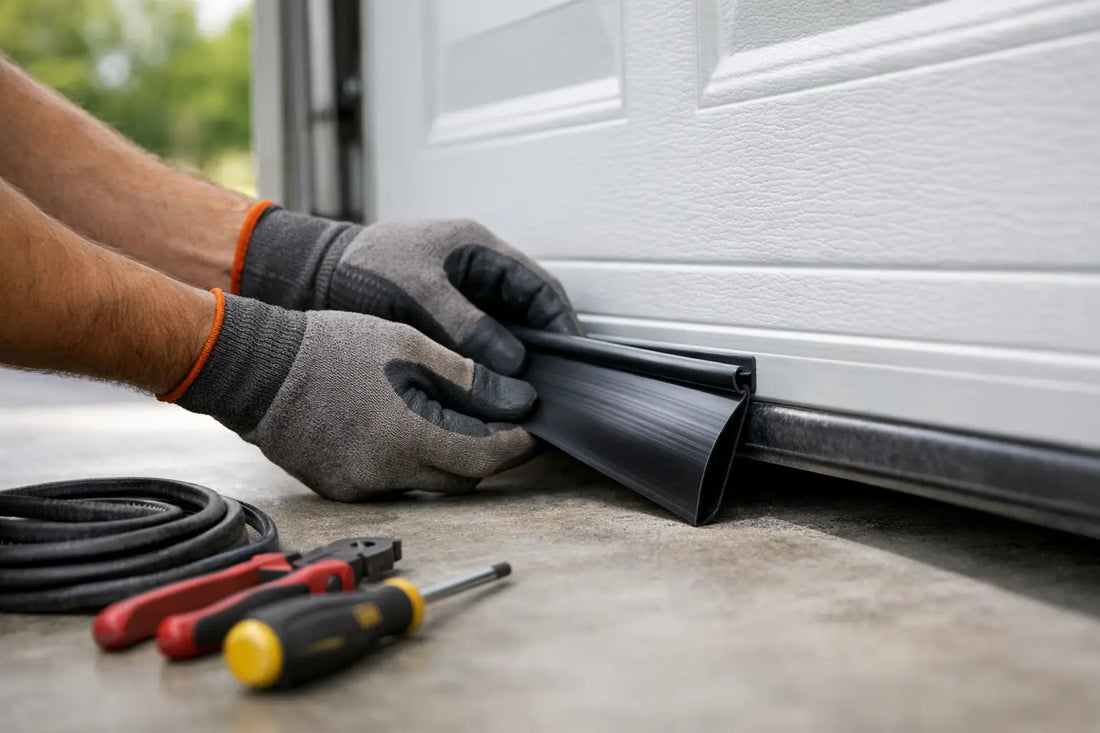

For a bottom seal, start with the door fully closed and the opener disconnected if needed for safety and control. Measure the existing seal length before removal. If the old material is torn, measure the door width and confirm whether the seal extends exactly to the edges or slightly beyond.
Pull the old seal out of the retainer channels. On older doors, dirt, corrosion, and deformation can make this harder than expected. Cleaning the channels before installing the new seal is worth the time. A dirty track can snag the new material and cause twisting during installation.
If the new seal is a slide-in style, feed it evenly through the channels rather than forcing one side ahead of the other. A light application of soapy water can help it move, but do not use anything that leaves heavy residue or attracts grit. Once installed, trim to fit if required by the product design.
For side and top seal replacement, close the door fully and position the new seal so it just compresses against the face of the door. Too loose and it leaks. Too tight and the door can bind against the jamb seal during operation. Fasten gradually and check contact as you go.
Common fit problems and what they usually mean
If the bottom seal bunches up or slides unevenly, the retainer channels may be bent or packed with debris. If the seal keeps pulling loose at one end, confirm that the profile matches the retainer. A seal that looks right from ten feet away can still be the wrong channel fit.
If you replace the bottom seal and still have a center gap, the issue may be floor slope or door panel alignment. A larger bulb seal can sometimes take up minor variation, but it will not correct a severely uneven slab. If the gap is at one corner, check track alignment and door balance before blaming the seal alone.
If side seal contact changes from top to bottom, the stop molding may be misaligned or the door may not be sitting square in the opening. Weather sealing can compensate for small irregularities, not structural ones.
Performance benefits beyond weather protection
A good seal does more than block rain. It helps keep windblown dust off stored equipment, limits pest entry, and can reduce the transfer of outdoor air into adjacent spaces. That matters if the garage shares walls with living areas or if you use the space as a workshop.
There is also a wear benefit. When debris blows under the door, it gets tracked into rollers, hinges, and floor contact surfaces. Keeping the opening cleaner helps reduce the grit that contributes to long-term mechanical wear. It is not a replacement for proper maintenance, but it supports it.
For homeowners chasing quieter operation, weather sealing is one part of a bigger picture. A tighter door perimeter can reduce slap and vibration at the opening, but if the system is loud from worn rollers, loose hardware, or metal-on-metal contact, those issues still need direct attention. That is why a parts-first approach works best - fix the seal where the door meets the opening, and fix the noise where the hardware creates it.
Is this a DIY job or a service call?
It depends on the seal type and condition of the door. Replacing a straightforward bottom seal in a clean, intact retainer is well within reach for many hands-on homeowners. Replacing perimeter seal is also manageable if the frame is sound and the fit is obvious.
The job gets less simple when the retainer is damaged, the door has alignment issues, or the opening is uneven enough that no standard seal will close the gap cleanly. In those cases, parts selection matters as much as installation. Buying once and buying correctly usually saves more time than trying to force a universal solution onto a door that needs a specific profile.
If you are sourcing parts online, bring measurements, photos of the seal end profile, and a clear idea of where the leak is happening. That makes it much easier to match the right replacement and avoid delays. This is the kind of problem The Garage Door Center is built to solve - practical fit, dependable parts, and no guessing where it counts.
A worn weather seal does not look dramatic, but it changes how the whole garage feels and functions. Fix the gap now, and you stop a small failure from turning into a constant source of mess, drafts, and avoidable wear.
