Garage Door Opener Force Adjustment Done Right
A garage door that stops, reverses, or strains on the way up can make opener force adjustment look like the obvious fix. Sometimes it is. More often, excess force is a symptom of a door that is binding, out of balance, or wearing out at the moving parts.
Force settings should help the opener recognize normal resistance and stop when resistance is unsafe. They should not be used to push a heavy, crooked, or poorly maintained door through its travel. Set too low, the opener may reverse before the door fully closes. Set too high, it can keep pushing against an obstruction, put added load on the motor, and hide a mechanical problem that needs attention.
What Opener Force Adjustment Actually Controls
Most modern garage door openers monitor resistance as the door travels. The up-force setting controls how much effort the opener uses or allows while lifting. The down-force setting does the same while closing. Depending on the model, adjustment may be made with dials on the motor housing, buttons on the opener, or a programmed menu sequence.
Force is not the same as travel limit. Limits tell the opener where the door should stop in the fully open and fully closed positions. If the door closes to the floor and then reverses, force may be involved. If it stops several inches above the floor or opens too far and hits the stop bolts, that is usually a limit setting issue.
The distinction matters because adjusting the wrong control rarely fixes the problem. It can also create a door that appears to work for a few cycles, then fails again when the temperature changes or the hardware shifts under load.
Start With the Door, Not the Opener
Before changing any opener settings, operate the garage door by hand. Pull the emergency release only when the door is fully closed, or when it is securely supported in the open position. Never disconnect an unsupported door that could fall.
Lift the door manually to about waist height and let go carefully. A properly balanced sectional door should stay near that position with only minor movement. It should move through its travel without dragging, jerking, scraping, or requiring excessive effort. If it feels heavy, drops quickly, or takes real force to lift, stop there. The issue is likely with the springs, cables, rollers, tracks, or door alignment - not the opener's force setting.
A garage door opener is designed to guide a balanced door, not lift dead weight. Increasing force to compensate for weak or broken springs can damage the opener gear, rail, trolley, or motor. It also increases the chance of a sudden failure when the door is under load.
Look for obvious resistance points while the door is disconnected. Check whether rollers wobble in the track, hinges bind between sections, tracks are bent, or the door rubs against the jamb. Dry metal rollers, worn bearings, loose hardware, and damaged top fixtures can all add resistance. A noisy door is often giving the same warning before it becomes an opener problem.
When a Force Setting May Need Adjustment
Once the door is balanced and moving freely, a minor force adjustment may be appropriate. Common signs include a door that reverses just before reaching the floor without contacting an obstacle, or a door that stops while opening even though the track is clear and the manual door test feels smooth.
Seasonal conditions can also affect operation. Cold weather can stiffen lubricant, shrink weather seal, and make a marginally adjusted door act differently. A new bottom seal may create more contact at the floor. These changes can justify a small adjustment, but only after confirming the door itself is not binding.
If the opener force suddenly needs a major increase after years of normal service, do not treat that as routine adjustment. Something has changed. A roller may be failing, a spring may have lost tension, a track may have shifted, or the opener may be nearing the end of its service life.

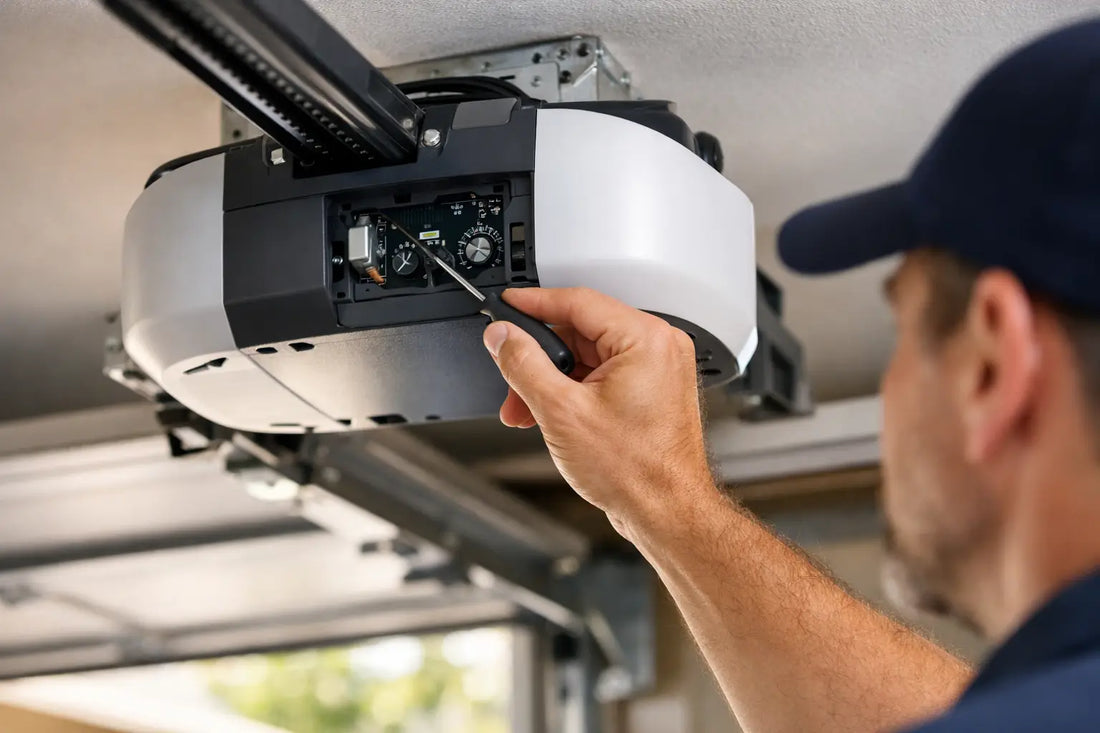

How to Make a Safe, Small Adjustment
Always use the instructions for your exact opener model. Controls and programming sequences vary, especially between older dial-style units and newer openers with electronic settings. The safe approach is gradual and verified.
1. Clear the doorway and make sure the photo-eye sensors are clean, aligned, and free of cobwebs or direct sunlight interference. Sensor issues can also cause a door to reverse or refuse to close.
2. Confirm the door moves smoothly by hand and that the opener rail, trolley, and mounting hardware are secure. Do not adjust force while a cable is loose, a spring is damaged, or the door is visibly out of level.
3. Increase or decrease the appropriate force setting by the smallest available increment. Do not make a large turn of a dial or jump through several programming levels at once.
4. Run a complete open-and-close cycle while watching the door. Listen for strain, watch for hesitation, and verify that it reaches the correct position without slamming, reversing, or pulling against the floor.
5. Test the safety reversal system immediately after any adjustment. Place a solid object such as a 2-by-4 flat on the floor in the center of the opening. When the closing door contacts it, the door must reverse. If it does not reverse, stop using the opener and correct the issue before normal operation resumes.
Do not test the reversal system with a person, pet, foot, hand, or anything that can be injured or damaged. The purpose of the test is to confirm that the opener recognizes resistance and reverses reliably.
Why More Force Is Usually the Wrong Answer
Higher force can make a struggling door complete a cycle, but that is not the same as fixing it. The motor and drive system continue absorbing the added load every time the door runs. Over time, that can wear out internal gears, stretch a chain, damage a belt drive, or cause a trolley to fail.
It also masks useful information. A door that reverses because a roller sticks in a bent track is telling you where maintenance is needed. Raising the force setting silences that warning until the resistance gets worse.
There is a practical trade-off. A setting that is too sensitive can cause nuisance reversals, especially when weather seal is new or temperatures are low. A setting that is too aggressive reduces the opener's ability to react to resistance. The correct setting is the lowest force that operates a properly maintained, balanced door through a complete cycle and still passes the reversal test.
Parts That Commonly Affect Opener Performance
Openers get blamed for problems that begin at the door. Worn rollers create drag and vibration in the track. Loose or fatigued hinges let sections shift as the door bends through the radius. Dry bearings and poorly lubricated pivot points make the opener work harder. A weakened spring changes the door's balance and can make the opener seem underpowered.
Replacing worn moving parts can restore smooth travel without touching the force setting. Quality rollers and properly fitting hinges reduce metal-on-metal friction, while a quieting upgrade that controls vibration can reduce rattling and instability throughout the system. The Garage Door Center focuses on these root-cause repairs because a smoother door protects both the opener and the door hardware.
Springs and cables deserve special caution. They are under high tension and are not a casual DIY adjustment. If the door is heavy, uneven, or has a broken spring, arrange professional service rather than increasing opener force. The same applies if a cable has come off a drum or the door is hanging crooked in the opening.
Common Force Adjustment Questions
Why does my garage door close, then immediately open?
First check the photo-eye sensors and make sure nothing is crossing the beam. If the door reaches the floor, contacts it, and reverses with clear sensors, the down force may be too low or the close limit may be set too far. Inspect the bottom seal and door movement before making a small adjustment.
Why does the door stop halfway when opening?
A binding roller, damaged track, weak spring, or failing opener drive can all cause this. Disconnect the opener and test the door manually. If it is hard to lift or will not stay open, do not increase up force. Repair the door system first.
How often should force settings be checked?
Force should be tested whenever the opener is installed, adjusted, repaired, or behaving differently. The safety reversal test should also be part of regular garage door maintenance. There is no benefit to changing a setting that is already operating correctly.
A properly adjusted opener should feel uneventful: the door moves smoothly, stops where it should, reverses when tested, and does not sound like it is fighting the system. If it does, give the door hardware the attention it is asking for before asking the opener for more force.
