Garage Door Bottom Seal Types Explained
A worn bottom seal usually shows up before you see it. The garage feels drafty, rainwater creeps under the door, leaves collect along the threshold, or the opener starts working harder because the door is no longer closing against a flexible cushion. If you are comparing garage door bottom seal types, the right choice depends on two things first - the retainer on the bottom of the door and the condition of the floor.
Why garage door bottom seal types matter
Bottom seals are not all interchangeable. The shape of the rubber or vinyl has to match the track, channel, or retainer attached to the bottom section of the door. Even if two seals look close, the wrong profile can slide out, bunch up, leak, or wear prematurely.
The floor matters just as much. A garage with a flat, level slab can use a simpler seal profile than one with cracks, dips, or an uneven center line. If the seal does not compress correctly across the full width of the door, you will still get air gaps and water intrusion even with a brand-new part.
That is why replacing a bottom seal is not just a material choice. It is a fitment and performance decision.

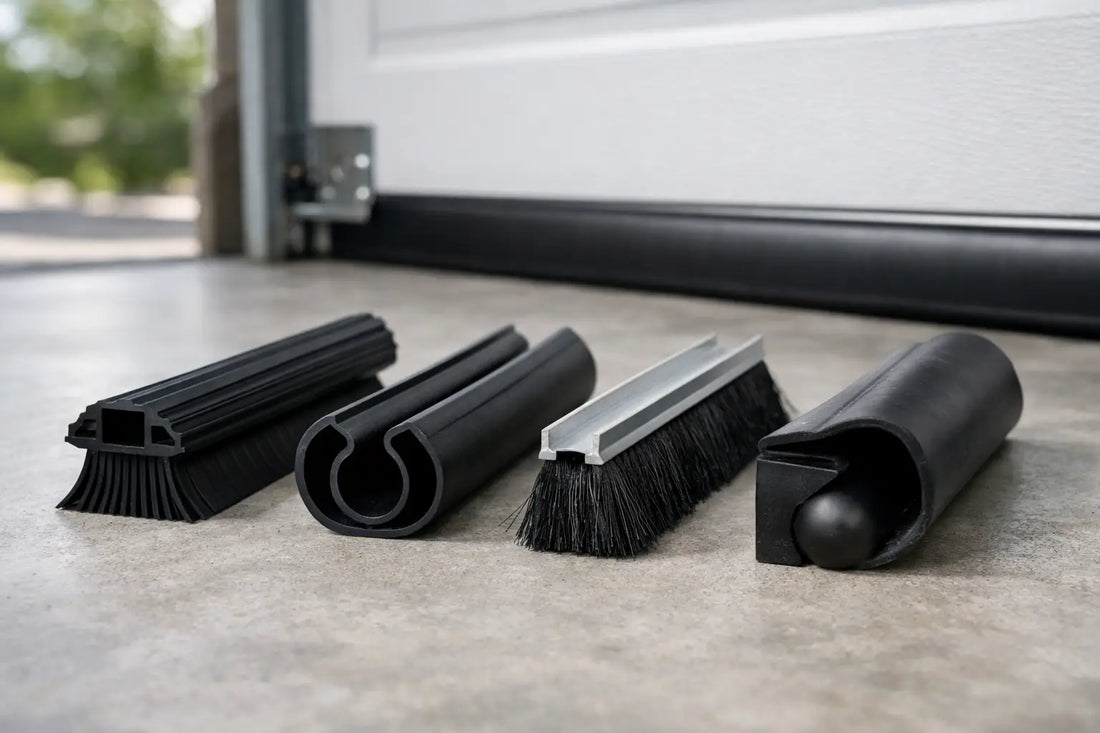

The main garage door bottom seal types
T-end bottom seals
T-end seals are one of the most common styles used on residential garage doors. They slide into a metal or PVC retainer mounted at the bottom of the door. The top edge of the seal has T-shaped ends that lock into grooves in the retainer, while the lower portion hangs down and compresses against the floor.
This style is popular because installation is straightforward and replacement is simple once you confirm the T-width. The catch is that T-end sizes vary. A seal with the wrong T-size may not stay secured in the channel, even if the rest of the profile looks correct.
For homeowners, this is often the best-case repair. If the retainer is in good shape and the seal has simply hardened, torn, or shrunk, swapping in the correct T-end profile can restore the seal without replacing other hardware.
Bulb seals
Bulb seals use a rounded lower section that compresses like a tube when the door closes. You will often see this shape paired with T-ends or other slide-in attachment styles. The rounded bulb helps absorb irregularities in the floor and can create a more forgiving weather barrier than a flat flap.
This is a practical option when the slab is slightly uneven or when you want better protection against drafts and wind-driven dust. The trade-off is compression resistance over time. Lower-grade material can flatten out and stop rebounding, which reduces sealing performance.
Beaded seals
Beaded seals attach through circular bead edges that roll or snap into a matching retainer. They are less universal than T-end styles and are often tied to specific door systems or manufacturers. If your door uses a beaded retainer, the replacement needs to match that system closely.
The advantage is secure retention. The downside is sourcing the correct profile. This is where many buyers run into trouble by ordering based only on door width instead of retainer shape.
J-type and U-type seals
J-type and U-type seals are named for the shape they form when viewed from the end. These profiles wrap or fold in a way that helps create a flexible contact point with the floor. Some are designed to fit single-channel retainers, while others are part of brand-specific bottom systems.
These styles can work well on doors that need a little more flex at the floor contact point. They are not automatically better than a bulb or T-style seal. They just solve a slightly different sealing problem depending on the door design and bottom hardware.
Flat or flap-style seals
Flat seals are simpler in shape and are often used in commercial applications or on doors with specific retainers. Some fasten into a channel, while others are attached mechanically. A flap-style seal can work on a relatively even floor, but it generally does not conform as well to surface variation as a bulb-style profile.
If your goal is basic contact with a clean, level slab, this type may be enough. If you are trying to keep out blowing rain, dirt, or insects on an older floor, a more compressible design usually performs better.
Nail-on or screw-on bottom seals
Not every door uses a slide-in retainer. Nail-on and screw-on seals mount directly to the bottom wood or metal section. These are common on older doors, some custom setups, or doors where the original retainer has been damaged or removed.
They are useful when you need a practical fix and do not have a channel system in place. The downside is that installation needs to be cleaner and more deliberate. Fastener spacing, straight alignment, and proper compression all affect the final seal. On metal doors, you also want to avoid creating unnecessary points for corrosion if the install is sloppy.
Material matters as much as profile
When people compare garage door bottom seal types, they often focus on shape and ignore material. That is a mistake. The profile determines fit, but the material determines how long the seal stays flexible and how well it handles temperature swings.
Vinyl is common and economical, but it tends to harden faster in extreme cold and can become brittle with age. Rubber and synthetic rubber blends generally stay more flexible and recover better after compression. That matters if your garage sees winter freeze cycles, summer heat, or frequent door use.
A cheaper seal may fit on day one and still fail early because it loses elasticity. OEM-grade material usually costs more upfront, but it pays off in service life and consistent sealing pressure.
How to choose the right seal for your door
Start by looking at the retainer, not the old seal. The old seal may be torn, compressed, or distorted enough that it no longer shows its original shape clearly. Measure the channel, identify whether it uses T-ends, beads, or direct fasteners, and confirm the width of the door.
Then look at the floor. If the slab is level and smooth, a standard profile may be all you need. If it has low spots or a center hump, choose a seal with enough flexibility and depth to maintain contact across the opening.
Climate and use also matter. A detached garage in a mild climate has different demands than a busy attached garage where you want to block drafts, reduce debris, and keep the system closing smoothly every day. If the bottom seal is part of a broader effort to improve door performance, pair it with good perimeter weather sealing and inspect the rollers, hinges, and track alignment at the same time.
Common mistakes that cause repeat problems
The biggest mistake is ordering by appearance alone. Many seals look similar online, but slight differences in T-width, bead size, or profile depth can make them incompatible.
Another common problem is ignoring the retainer condition. If the channel is bent, packed with corrosion, or split at the ends, even the correct seal may not stay in place. Clean the channel before installation and inspect it for damage.
Installation technique matters too. A new seal that is stretched tightly during install may shrink back and leave end gaps later. It should be fitted naturally, with enough length to fully seal the width of the door without bunching.
When the bottom seal is not the whole problem
A new seal cannot compensate for a door that is out of adjustment. If one side of the door closes higher than the other, if the bottom section is bowed, or if the opener force settings are off, you may still have gaps after replacement.
This is also why some noise and performance complaints do not disappear with weather seal alone. If the door vibrates, rattles, or binds as it closes, the issue may involve worn rollers, loose hardware, or panel movement. A better bottom seal improves contact at the floor, but it works best as part of a properly maintained system.
For many homeowners and service pros, the best result comes from treating the seal as a fitment part, not a generic accessory. Match the retainer correctly, choose a material that holds up, and select a profile that suits the floor you actually have.
If you get those three things right, the door closes cleaner, the garage stays better protected, and you avoid doing the same repair twice. That is usually the difference between a quick patch and a fix that lasts.
